Product Overview

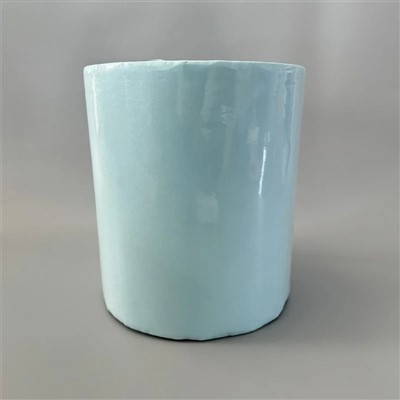

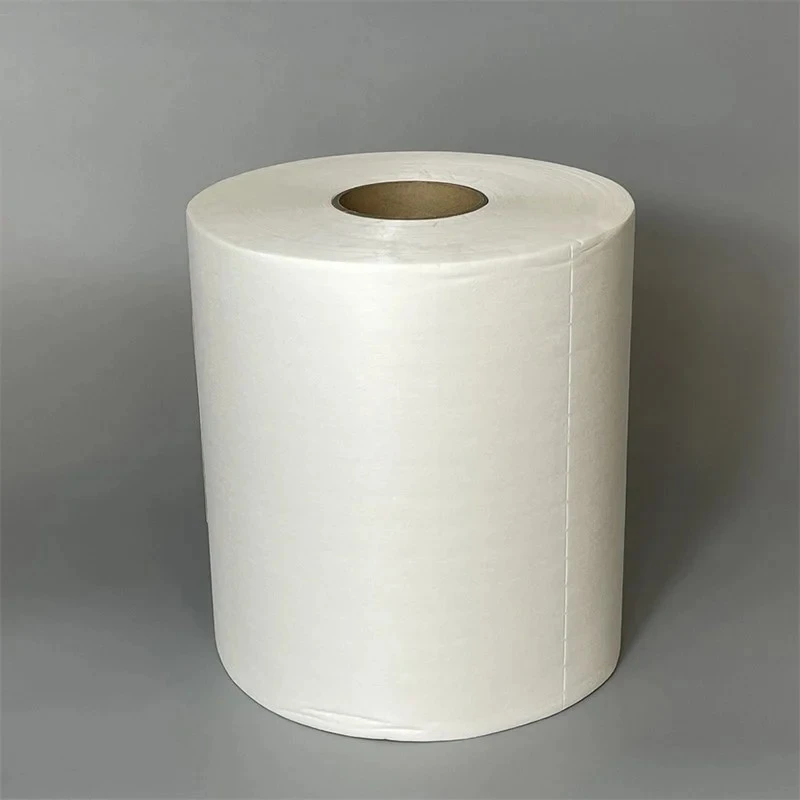

PP Needle Punched Nonwoven Fabric is engineered from high-quality 100% polypropylene (PP) fibers-available in both virgin and recycled materials-through professional opening, carding, web forming, and high-density needle punching reinforcement processes. This results in a highly durable, mechanically strong, and eco-friendly material. It is engineered to meet rigorous performance standards across the automotive, filtration, geotextile, construction, and industrial packaging sectors worldwide.
Key Features
High Mechanical Strength: Exceptional tensile strength and tear resistance (MD/CD), maintaining structure under heavy load.
Dimensional Stability: Superior stability, resistant to elongation and deformation under varying temperatures.
Optimal Permeability & Filtration: Excellent uniform pore structure for precise air and liquid filtration.
Chemical & Environmental Resilience: High resistance to acids, alkalis, moisture, mold, and rot.
Eco-Friendly & Sustainable: 100% recyclable; supports Global Recycled Standard (GRS) compliance.
Flexible Tailoring: Fully customizable thickness, weight (GSM), stiffness, color, and surface finishing.
Technical Specifications
| Item | Specification / Performance Standard |
| Material | 100% Polypropylene (Virgin PP / Recycled PP available) |
| Process | Mechanical Needle Punched |
| Weight Range | 80 gsm to 1500 gsm (Customizable) |
| Width | 10 cm to 320 cm (Customizable) |
| Thickness | 0.5 mm to 10 mm (Customizable) |
| Color | White, Black, Grey, or custom Pantone colors |
| Pattern | Plain, Embossed, Ribbed, Velour |
| Surface Treatment | Heat set, Calendered, Coated, Flame Retardant, Hydrophobic/Hydrophilic |
| Compliance | ISO9001, REACH, RoHS, OEKO-TEX, GRS compliant |
Applications
Automotive Industry: Trunk liners, carpet backing, parcel shelves, wheel arch liners, and acoustic insulation (Low-VOC & Flame Retardant).
Filtration & Separation: Air HVAC filters, liquid filtration bags, dust collector filters, and oil-absorbent pads.
Geotextiles & Construction: Roadbeds, railways, drainage systems, erosion control, and waterproof roof underlayment (High CBR Puncture Resistance).
Agriculture & Horticulture: Weed control mats, crop protection covers, and greenhouse thermal insulation (UV Stabilized).
Furniture & Mattresses: Sofa linings, mattress spring pockets, quilting backing, and dust covers.
Industrial & Packaging: Protective wrapping, heavy-duty tool bags, and soundproofing layers.
Our Advantages
Strict OEM/ODM Customization: Backed by an in-house R&D team, we customize technical parameters (MD/CD tensile strength, elongation, airflow rate) to match your exact application specifications.
Certified Quality Assurance: Operating under ISO9001 quality management. All raw materials and finished products undergo rigorous testing, with third-party inspection reports (SGS, TUV, Intertek) available upon request.
Competitive Cost-Efficiency: Optimized raw material sourcing and automated lean manufacturing allow us to offer tier-1 competitive pricing for global distributors and manufacturers.
Manufacturing Process
Raw Material Selection & Lab Testing (Virgin/Recycled PP Fiber)
Precise Fiber Opening, Blending & Weighing
High-Speed Carding & Cross Lapping (Web Forming)
Multi-Stage Needle Punching (Mechanical Bonding)
Functional Finishing (Heat Setting / Calendering / Coating / Slitting)
Inline Automatic Metal Detection & Visual Inspection
Slitting, Rolling, Labeling & Final Quality Auditing
Quality Control System
To guarantee batch-to-batch consistency, our internal laboratory monitors the entire manufacturing process based on international standards (ASTM / ISO):
Mass per Unit Area (GSM) Control: Real-time online scanning ensuring weight variance is kept within a strict tolerance of plus or minus 3 percent.
Tensile & Elongation Testing: Ensuring high MD/CD strength via professional tensile testing equipment.
Thickness & Uniformity Gauging: Micron-level precision measurement across the full width.
Specialty Performance Testing: Air permeability, hydrostatic pressure, UV resistance, and flame retardancy (FMVSS 302) validation.
Batch Traceability: Every roll comes with a unique barcode tracking raw materials, production line, shift, and QC inspector.
Packaging & Logistics
Standard Roll Packaging: Wound on heavy-duty cardboard tubes (inner diameter [2 inches / 3 inches]).
Double Layer Protection: Wrapped inside with transparent PE protective film, outside with strong waterproof PP woven bags to withstand long-distance maritime transport.
Custom Labeling: Supporting customized barcodes, company logos, shipping marks, and multi-language product labels.
Global Shipping: Strategically located near [Ningbo / Shanghai / Qingdao] port, offering flexible FOB, CIF, DDP, and CFR terms via sea, air, or rail.
FAQ
Q: Can you customize the GSM, thickness, or specific properties for our industry?
A: Absolutely. We can engineer the fabric from 80 gsm up to 1500 gsm, with custom thickness up to 10 mm. We can also apply specialized treatments such as flame retardant (FR), UV-stabilized, hydrophilic, hydrophobic, or anti-static according to your technical data sheet.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: Generally, the MOQ is [1,000 kg - 3,000 kg] per specification, depending on the required width and weight. Our standard production lead time is [15 - 20 days] after receiving the deposit and confirming production samples.
Q: Do you provide free samples, and can you match our physical sample?
A: Yes, we provide free A4-size or 1-meter roll samples for quality evaluation, with shipping costs collected. Furthermore, our lab can analyze your physical samples to provide a precise counterpart recipe and pricing quotation.
Q: What compliance and international certificates do your products hold?
A: Our manufacturing facilities are ISO9001 and ISO14001 certified. Our PP nonwoven fabrics can pass REACH, RoHS, and OEKO-TEX tests. For eco-conscious buyers, we can also provide materials that meet GRS (Global Recycled Standard) certification.
