Product Overview

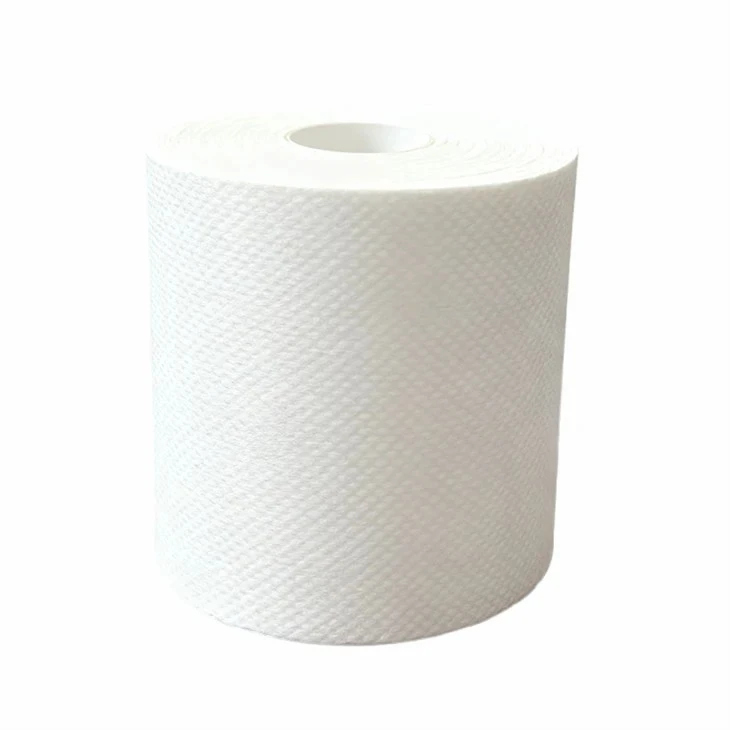

Polyester Needle Punched Nonwoven Fabric is a high-strength nonwoven material engineered from premium polyester fibers (PET) through a mechanical needle punching process. Requiring no weaving or knitting, this material provides a cost-effective, durable, and highly versatile industrial fabric designed to perform under demanding conditions. It is widely utilized across filtration systems, automotive interiors, civil engineering geotextiles, and construction waterproofing.
Key Features
High Tensile Strength & Elongation Recovery: Excellent mechanical resistance in both machine direction (MD) and cross direction (CD).
Superior Abrasion & Tear Resistance: Engineered to withstand heavy friction and stress during installation and long-term use.
Outstanding Dimensional Stability: Maintains its structure, thickness, and shape even under fluctuating tension and temperature.
High Permeability & Uniform Filtration: Optimally calibrated pore structure ensures excellent fluid/air passage while retaining fine particles.
Thermal & Chemical Resilience: Highly resistant to acids, alkalis, and temperatures up to 150 degrees Celsius.
Fully Customizable Specifications: Available in a broad range of weights, thicknesses, and densities to match specific project requirements.
Excellent Processing Adaptability: Easy to die-cut, slit, ultrasonic weld, laminate, or coat.
Technical Specifications
| Property / Item | Specification / Parameter | Test Standard Reference |
| Material Composition | 100% Polyester (PET) / Virgin or Recycled | - |
| Production Technology | Mechanical Needle Punching | - |
| Weight Range | 80 gsm to 1500 gsm (Customizable) | ASTM D3776 / ISO 3801 |
| Thickness Range | 0.5 mm to 10.0 mm | ASTM D1777 / ISO 5084 |
| Roll Width | Up to 320 cm (Can be slit to specific widths) | - |
| Color Options | White, Black, Grey, or Custom Matched | - |
| Surface Treatment | Smooth, Rough, Singed, Calendared, or Heat-treated | - |
| Format | Available in Rolls, Custom Pre-cut Sheets, or Laminated | - |
Production Process
Fiber Opening and Blending: Raw polyester fibers are thoroughly loosened and mixed to ensure absolute material uniformity.
Carding Process: Fibers are mechanically combed into a precise, multi-layered fiber web.
Cross Lapping: The fiber web is cross-layered to achieve the exact target weight and uniform multi-directional strength.
Needle Punching Reinforcement: Thousands of specially designed barbed needles repeatedly punch the web, interlocking the fibers mechanically.
Heat Setting & Finishing: Thermal treatment or calendaring is applied to set the final thickness and optimize surface properties.
Slitting, Rolling, and Packaging: The fabric is cut to the requested width, rolled, and sealed for shipment.
Main Application Solutions
Filtration & Environmental Protection
Air Filtration: Medium-efficiency pocket filters, HVAC dust collection systems, and cabin air filters.
Liquid & Industrial Filtration: Liquid filter bags for chemical processing, wastewater treatment, and coolant filtration.
Civil Engineering & Geotextiles
Subgrade Stabilization: Road, railway, and highway foundation reinforcement to prevent soil mixing.
Drainage & Erosion Control: Landfills, river dams, and coastal engineering projects requiring reliable water permeability and soil retention.
Automotive Engineering
Interior Trim: Molded trunk liners, parcel shelves, headliners, and floor carpet backings.
Acoustic Insulation: Wheel arch liners and engine bay sound-absorbing blankets.
Construction & Building Materials
Waterproofing: Substrate carrier sheets for bituminous waterproofing membranes and roofing underlayment.
Thermal Insulation: Protective cushioning layers for commercial and residential insulation installations.
Furniture & Industrial Packaging
Mattress & Bedding: Protective spring pocket wrapping, pull-strips, and cushioning layers.
Surface Protection: Heavy-duty protective fleece for construction surfaces, machinery packaging, and transport pads.
Advanced Customization Options
Weight & Thickness Customization: Precision calibration to meet exact density targets.
Surface Enhancements: Singeing (anti-fuzz), glazing, heat-pressing, and polyethylene (PE) film lamination.
Specialized Performance Additives
Flame Retardant: Compliant with international fire safety standards such as BS5852 or CFR1633.
Anti-Static: Conductive fiber integration for hazardous dust environments.
Hydrophobic / Oleophobic: Water and oil repellent surface treatments.
Packaging & Logistics
Standard Protection: Securely rolled on heavy-duty cardboard cores and wrapped in double-layer transparent PE film to block moisture and dust.
Bulk Shipment Loading: Available in loose roll container loading (to maximize volume) or palletized with stretch wrapping (for rapid forklift unloading).
Commercial Labeling: Custom waterproof labels showing roll number, gross weight, net weight, linear meters, and batch numbers.
Production Lead Time: 10 to 25 days depending on total order volume and custom specification queue.
Quality Assurance Testing Protocols
Every production lot undergoes standardized laboratory testing before release:
Tensile Strength (MD/CD): Verification of grab and strip tensile strength using electronic testers.
Weight & Thickness Consistency: Multiple cross-web samples checked to ensure compliance with technical tolerances.
Puncture & Tear Resistance: Ensuring material integrity for demanding geotextile or industrial applications.
Visual Surface Inspection: Continuous automated or manual monitoring to eliminate holes, thin spots, or un-needle-punched areas.
Environmental Sustainability
Recycled Polyester (RPET) Options: We offer production lines dedicated to processing post-consumer recycled polyester fibers, supporting circular economy and green building requirements.
Chemical Safety: Free from harmful binders or chemical glues; fully compliant with REACH and RoHS environmental standards.
Frequently Asked Questions
Q: What is the Minimum Order Quantity (MOQ) for custom runs?
A: Our standard MOQ is 1 Ton or 5,000 square meters per specification. For standard stock items or initial trial orders for quality evaluation, smaller quantities can be negotiated.
Q: Are free samples available for testing?
A: Yes. We provide free material swatches in A4 size or small sample rolls for laboratory testing and quality verification. International courier fees are typically covered by the recipient.
Q: Can the fabric be engineered to meet specific air permeability or water flow rates?
A: Yes. By adjusting fiber denier, needle density, and depth of penetration during the manufacturing process, we can calibrate the pore size to meet specific air or liquid permeability coefficients.
